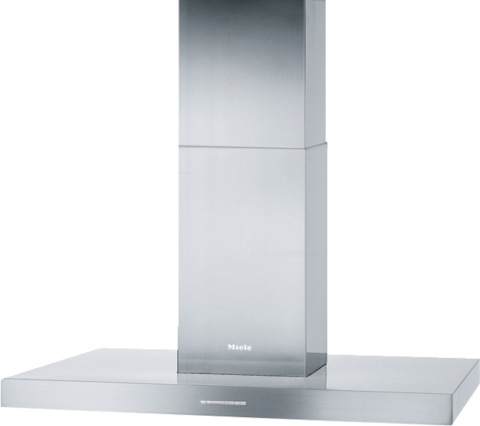

  • Miele - PUR 98 D Stainless steel – Cooker hoods - 1
Island cooker hoodSilver

PUR 98 D Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.
Colour:Stainless steel
sale price฿162,000.00
1
All product prices incl. VAT at null%.


Product details

  • Timeless design – stainless steel canopy 898 mm wide
  • Powerful – 790 m3/h in Booster level
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Suitable for every home - for extraction or recirculation
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
PUR 98 D
Manufacturer material number
10456880
EAN number
4002515784228
Marketing class
Silver
Island cooker hood
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUI 32
Active charcoal filter (order separately)
DKF 12-P
Colour
Stainless steel
Electronic controls
Controls
Light-touch switches with LEDs
Power levels (number without Booster level)
3
Booster levels
1
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
4 x 3 W
Light intensity in Lx
500 lx
Colour temperature in K
3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
290
Air throughput in Level 2 (m³/h) according to EN 61591
420
Air throughput in Level 3 (m³/h) according to EN 61591
570
Air throughput in Booster level 1 (m³/h) according to EN 61591
790
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
48
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
63
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
35
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Air throughput in Level 1 (m³/h) according to EN 61591
220
Air throughput in Level 2 (m³/h) according to EN 61591
320
Air throughput in Level 3 (m³/h) according to EN 61591
420
Air throughput in Booster level 1 (m³/h) according to EN 61591
470
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
63
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
68
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
73
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
76
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
55
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
60
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
63
Safety shut-off
Canopy dimensions (W x H x D) in mm
898 x 70 x 598
Overall hood height for extraction mode and external in mm
690–990
Overall height for recirculation mode cooker hoods in mm
750–1060
Overall height for vented and external in in. (mm)
690
Overall height for extraction mode and external mode cooker hoods in mm
990
Overall height for recirculation in in. (mm)
750
Overall height for recirculation mode cooker hoods in mm
1060
Canopy width in in. (mm)
898
Canopy height in in. (mm)
70
Depth of hood canopy in in. (mm)
598
Net weight in kg
34
Hard-wired connection
Total rated load in kW
0.307
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Telescopic chimney
Non-return flap
EAN
4002515784228

What's included

Non-return flap
  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Downloads

dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/5573bb52-836d-4de5-81eb-b3c5003cb2a2/20000108065_HighresDigitalRGB.png
Descriptions
DA 410-6, DA 4208 D, DA 4208 D EXTA, DA 6396 D, DA 6596 D, PUR 98 D (Installation drawing)
1) Installation area/site, 2) Vented, 3) Recirculation, 4) Installation alternatively with spacer frame, 5) Ventilation grille positioned at the top for recirculation, 6) A supply lead, and for vented mode flexible vent ducting, must be pre-fitted for the connection in the ceiling to the connection of the cooker hood.
