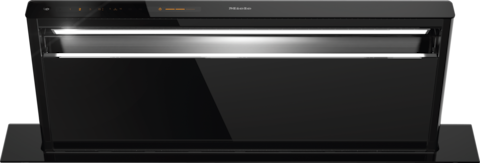

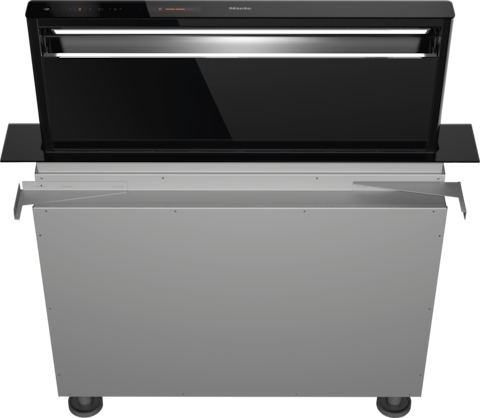

  • Miele - DAD 4841 Black Levantar Obsidian black – Cooker hoods - 1
  • Miele - DAD 4841 Black Levantar Obsidian black – Cooker hoods - 2
  • Miele - DAD 4841 Black Levantar Obsidian black – Cooker hoods - 3
  • Miele - DAD 4841 Black Levantar Obsidian black – Cooker hoods - 4
  • Miele - DAD 4841 Black Levantar Obsidian black – Cooker hoods - 5
Downdraft extractorGold

DAD 4841 Black Levantar Obsidian black

in an elegant obsidian black design and with intuitive SmartControl operation
Colour:Obsidian black
sale price฿199,000.00
1
All product prices incl. VAT at null%.


Product details

  • 916 mm wide – the perfect combination with
    panorama hobs
  • Easy recirculation mode installation with
    plug&play accessory set
  • Motorised retractable deflector plate –
    Hood in Motion
  • Unique user convenience –
    Con@ctivity
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DAD 4841 Black Levantar
Manufacturer material number
12440700
EAN number
4002516761679
Marketing class
Gold
Downdraft extractor
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUP 150,DUU 600
Active charcoal filter (order separately)
[ "DKF 30-P", "DKF 30-R" ]
Colour
Obsidian black
Edge extraction
Miele@home
Con@ctivity
Yes
Electronic controls
Touch-on-glass controls
Controls
SmartControl
Power levels (number without Booster level)
3
Booster levels
2
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover
Google voice control
Push notifications
RemoteUpdate
Smart Home Integration
Energy efficiency class (A+++ to D)
A
Annual energy consumption in kWh/year
41.6
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
B
PowerManagement system
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
1 x 11,2 W
Light intensity in Lx
400 lx
Colour temperature in K
3500 Kelvin
Dimmer function
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
200
Air throughput in Level 2 (m³/h) according to EN 61591
340
Air throughput in Level 3 (m³/h) according to EN 61591
440
Air throughput in Booster level 1 (m³/h) according to EN 61591
600
Air throughput in Booster level 2 (m³/h) according to EN 61591
640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
44
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
57
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
70
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3
72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
43
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
56
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
58
Air throughput in Level 1 (m³/h) according to EN 61591
160
Air throughput in Level 2 (m³/h) according to EN 61591
320
Air throughput in Level 3 (m³/h) according to EN 61591
415
Air throughput in Booster level 1 (m³/h) according to EN 61591
520
Air throughput in Booster level 2 (m³/h) according to EN 61591
555
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
50
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
64
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
69
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
75
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3
76
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
37
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
56
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
61
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
62
Safety shut-off
Single-ply safety glass (ESG)
Canopy width in in. (mm)
916
Depth of hood canopy in in. (mm)
170
Net weight in kg
34
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.251
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Diameter of extraction ducting connection in mm
150
Optimum combination with hob subject to availability
KM 7689 FL; KM 7684 FL
Bottom exhaust duct
EAN
4002516761679
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

  • Decorative panels instead of metal grease filters
    Decorative panels instead of metal grease filters

    Edge extraction

    Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.

  • Elegant touch controls
    Elegant touch controls

    SmartControl

    High-quality and functional: enjoy convenient touch controls with a dimmer function.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Miele cooker hoods in motion
Miele cooker hoods in motion

Hood in motion

Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.
Elegant touch controls
Elegant touch controls

SmartControl

High-quality and functional: enjoy convenient touch controls with a dimmer function.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Decorative panels instead of metal grease filters
Decorative panels instead of metal grease filters

Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.
A completely odour-free kitchen
A completely odour-free kitchen

Longlife AirClean filter

Efficient odour neutralisation: durable, as the active charcoal filter can be regenerated in the oven.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate2,

    Bringing new functions directly to your appliance.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications2,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

  • A spark of magic for the kitchen
    A spark of magic for the kitchen

    Voice control2, 3,

    Convenient operation via voice control.

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/b3b747af-a689-4acf-b9f2-b3ba011f5560/20000188137_HighresDigitalRGB.png
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - surface mounted, AP <gt/> 600 mm - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
POSTSCRIPT
Download
https://media.miele.com/dam/a061378f-ba2b-4645-97c0-b3ba011f09a9/20000188168_HighresDigitalRGB.png
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
POSTSCRIPT
Download
https://media.miele.com/dam/3d1769b6-8b48-445a-a510-b3ba011ee964/20000188182_HighresDigitalRGB.png
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - surface mounted, AP <gt/> 600 mm - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
POSTSCRIPT
Download
https://media.miele.com/dam/7be4e23c-48e2-4cfb-add4-b3ba011ed720/20000188190_HighresDigitalRGB.png
Descriptions
DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
POSTSCRIPT
Download
https://media.miele.com/dam/c16b3efe-5e54-4c89-b06e-b3ba0173e1b9/20000199871_HighresDigitalRGB.png
Descriptions
DAD4841, Installation drawings
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., * Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used.
POSTSCRIPT
Download
https://media.miele.com/dam/bffcb9d9-2922-4066-b32f-b3ba0173dd39/20000199873_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, Installation drawings
DAD4841, DAD4941, Installation drawings
POSTSCRIPT
Download
https://media.miele.com/dam/b4d06b98-b9fc-4541-8b8c-b3ba0173dd5a/20000199874_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, Installation drawings
① The minimum dimension is required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used.
POSTSCRIPT
Download
https://media.miele.com/dam/eacfb476-6a8b-45e2-9096-b3ba0173d89e/20000199875_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, overlying, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1) Cutout for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
POSTSCRIPT
Download
https://media.miele.com/dam/e80f73b6-25ec-495b-ab2b-b3ba0173d88d/20000199876_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/c693651a-79b9-4cab-acf8-b3ba0173d409/20000199877_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Surface-mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/73e0ce0d-8821-4bb8-9343-b3ba0173d3ff/20000199878_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/fabda6de-1393-424b-8c0c-b3ba0173cf3a/20000199879_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7684 FL or KM 7689 FL., Surface mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/67b1d22a-697d-4f0a-be04-b3ba0173cf5d/20000199880_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/22925ad1-b438-49ba-ad80-b3ba0173c5b9/20000199883_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, overlying - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/fcc3eea6-3ab5-4623-b0b3-b3ba0173c5bc/20000199884_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, flush - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/80edf758-e7ae-4215-8198-b3ba0173c133/20000199885_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, overlying - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
POSTSCRIPT
Download
https://media.miele.com/dam/dfbd33d7-c22f-4f4c-8ffb-b3ba0173c13b/20000199886_HighresDigitalRGB.png
Descriptions
DAD4841, DAD4941, flush - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
POSTSCRIPT
Download
  • 1.All product prices incl. VAT at null%.
  • 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 3.Voice control uses the Google LLC and Amazon Alexa services and is based on their availability. The range of functions can vary depending on the country. Google, Google Home and Google Nest Mini are trademarks of Google LLC. Google Nest Mini requires WiFi, an internet connection, a nearby power socket, a Google account and a compatible mobile device. Minimum requirements for the operating system can be found at: g.co/home/req. Compatible with Alexa. Amazon, Alexa and all associated trademarks are trademarks of Amazon.com, Inc. or their affiliated companies.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
